Instrumentation Manifold Valves
Instrumentation Manifold Valves
Instrumentation manifold valves are precision-engineered components used to control, isolate, and equalize pressure in instrumentation and process systems.
Manufactured from high-quality materials such as stainless steel, carbon steel, and alloy steel, these valves are designed to handle high pressure, temperature, and corrosive environments with excellent reliability.
Available in configurations such as 2-valve, 3-valve, and 5-valve manifolds, they allow easy maintenance, calibration, and isolation of instruments like pressure gauges and transmitters.
Each valve is manufactured and tested according to international standards such as ASME, ASTM, and API to ensure leak-tight performance and durability.
Known for their robust design, precision operation, and compact structure, instrumentation manifold valves are widely used in oil and gas, chemical, petrochemical, and power generation industries.
Features
- Available in a variety of materials like SS316, SS316L, SS304, CS, and NACE compliance.
- Available in sizes up to 1/2" NPT, BSPT, and BSP.
- Working pressure up to 6000 psi.
- Temperature ratings from -50 to 200°C with standard PTFE packaging.
- Up to 400°C with graphoil packaging.
- Low operating torque.
- Color-coded dust cap for identification of valve type.
- Easy to install and maintain.
- 100% factory tested.
Application
Instrumentation Manifold Valves are widely used for isolation, equalizing, and venting of process lines in various industrial systems. These valves are essential for ensuring accurate measurement, control, and safety in fluid handling operations.
They are primarily used in pressure and differential pressure instrumentation systems to isolate instruments during maintenance, calibration, or replacement without disrupting the process flow.
Common applications include impulse lines, flow transmitters, pressure gauges, switches, recorders, and plotters in industries such as oil and gas, petrochemical, power generation, water treatment, and process plants.
Designed for reliability and precision, these valves ensure safe venting of trapped media, smooth pressure equalization, and secure shut-off in both high-pressure and high-temperature conditions.

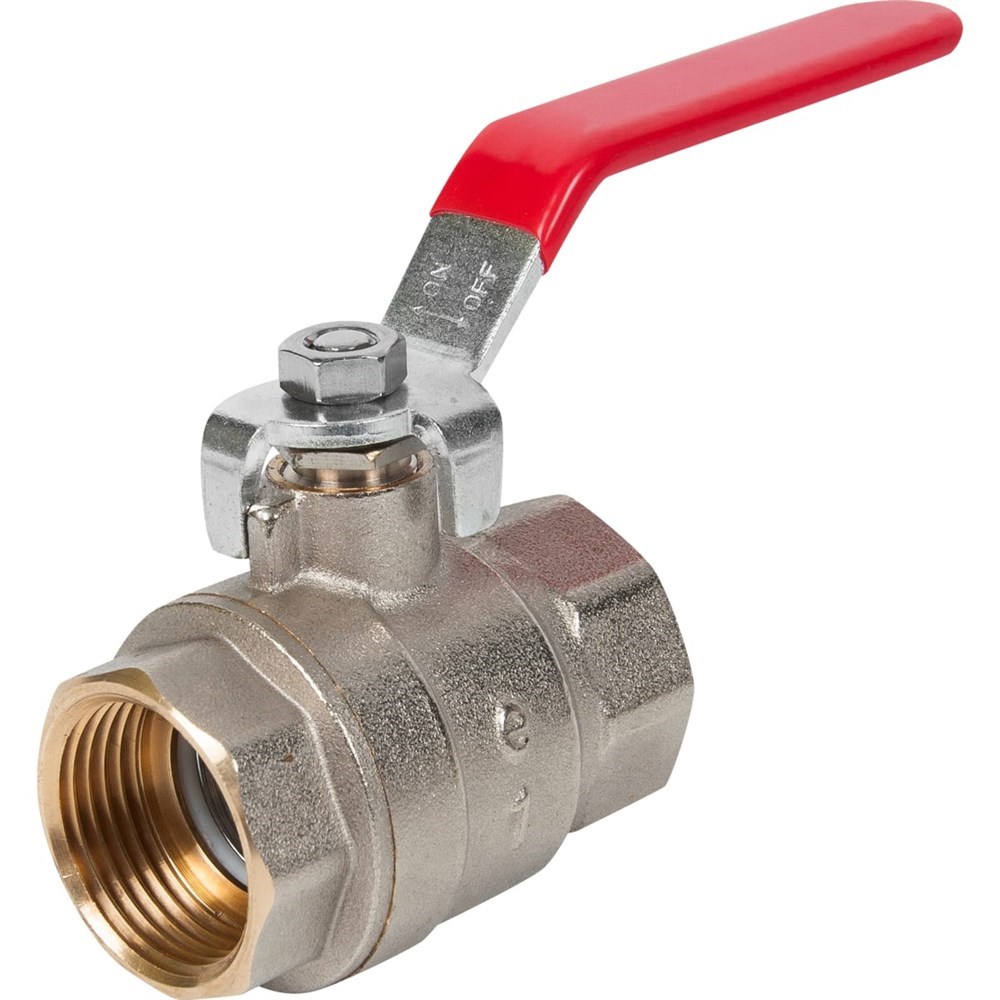

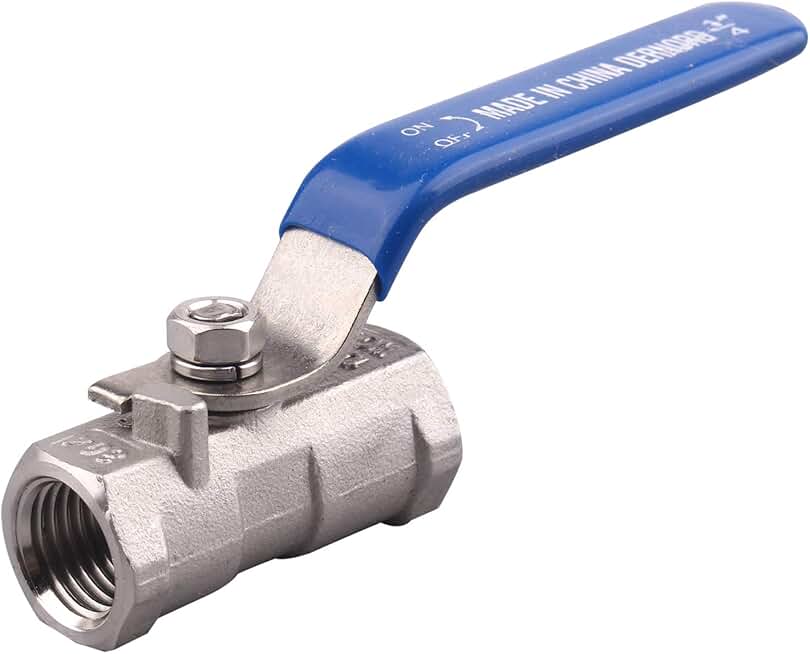

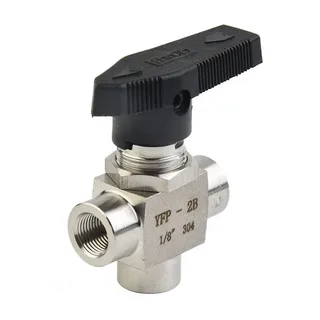

Instrumentation Ball Valves
Instrumentation ball valves are designed for reliable shut-off and control of fluid flow in instrumentation, hydraulic, and process systems.
Manufactured from high-quality materials such as stainless steel, carbon steel, and brass, these valves are engineered to handle high pressure, temperature, and corrosive media with precision.
The quarter-turn ball mechanism ensures smooth operation, tight sealing, and minimal torque for easy handling even in demanding applications.
Each valve is tested and manufactured in accordance with international standards such as ASME, API, and ISO to ensure leak-proof performance and durability.
Known for their compact design, ease of installation, and long service life, instrumentation ball valves are widely used in oil and gas, chemical, power, and process industries.
Features
- Available in a variety of materials like SS316, SS316L, SS304, CS, and NACE compliance.
- Available in sizes up to 1/2" NPT, BSPT, and BSP.
- Working pressure up to 6000 psi.
- Temperature ratings from -50 to 200°C with standard PTFE packaging.
- Up to 400°C with graphoil packaging.
- Low operating torque.
- Color-coded dust cap for identification of valve type.
- Easy to install and maintain.
- 100% factory tested.
Application
Instrumentation Ball Valves are used for precise on-off control and isolation of process media in a wide range of industrial systems. These valves play a vital role in maintaining operational safety, efficiency, and accurate flow control in fluid handling applications.
They are commonly utilized in instrumentation, hydraulic, and pneumatic systems for the shut-off and regulation of gases and liquids under high pressure and temperature conditions.
Typical applications include pressure gauges, transmitters, analyzers, sampling systems, and control panels across industries such as oil and gas, petrochemical, chemical, power generation, and water treatment.
Designed for dependable performance and minimal leakage, these valves ensure smooth operation, tight sealing, and long service life in both stationary and field installations.
Instrumentation Manifold Valves Types
