Double Ferrule Fittings

Double ferrule fittings are precision components used in piping systems to provide leak-proof and secure connections for high-pressure and high-purity applications. Manufactured from high-quality materials such as stainless steel, carbon steel, and alloy steel, these fittings are designed to withstand extreme pressure, temperature variations, and corrosive environments.
The two-ferrule design ensures a tight seal without deforming the tubing, making installation and maintenance easier and more reliable.

Each fitting is manufactured and tested according to international standards such as ASME, ASTM, and ISO to guarantee leak-proof performance and durability.
Known for their robustness, precise sealing, and ease of use, double ferrule fittings are widely used in chemical, pharmaceutical, petrochemical, and industrial piping systems.

Performance

Work on low as well as high pressure.
Work on low as well as high temperature rated for tubes.
Work without leakage upto burst point.
Seals continuously under make and break condition.

Tubing Selection

For better performance of the fittings, the tubing should be reasonably sound, free from scratches and draw lines, have a good surface finish, and the ends should be free from burrs. The tubing should be compatible with the process fluid, temperature, and pressure. Fully annealed seamless tubing in accordance with ASTM A213 and ASTM A269 or equivalent, with a preferred hardness of 75–80 HRB, is best suitable for these tube fittings.

Double Ferrule Fittings Types

Product Range & Technical Specification

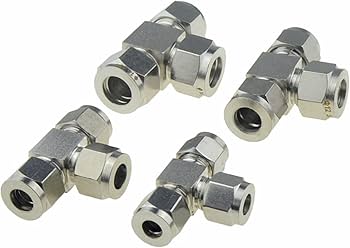

Tube to Tube Connection	Straight Inline: Equal Union, Reducing Union, Bulkhead Union Elbow: Union Elbow, Bulkhead Union Elbow, Bulkhead Union Elbow Tee: Union Tee, Reducing Union Tee

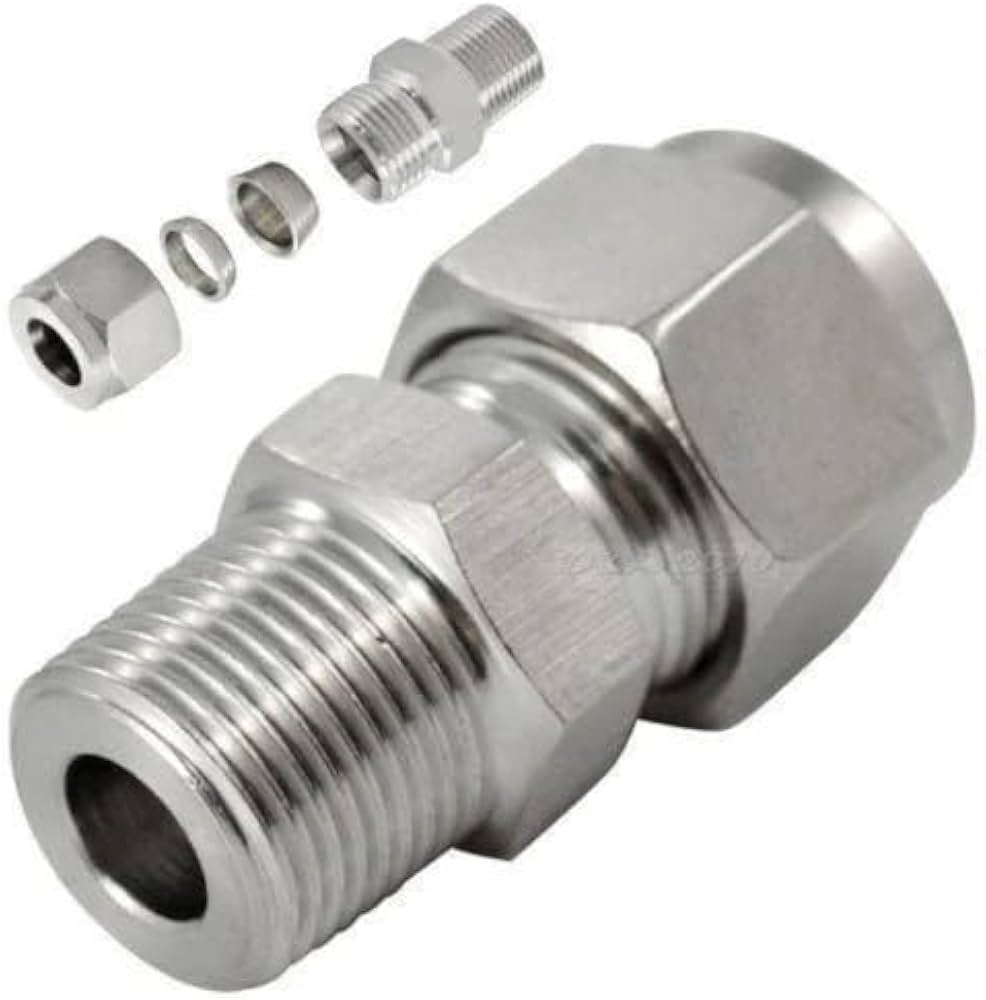

Tube to Female Pipe Connection	Straight Inline: Male Connector, Bulkhead Male Connector, Male Adaptor Elbow: Male Elbow, Positionable Male Elbow, Swivel Elbow Tee: Male Branch Tee, Male Run Tee
Tube to Male Pipe Connection	Straight Inline: Female Connector, Bulkhead Female Connector, Female Adaptor Elbow: Female Elbow Tee: Female Branch Tee, Female Run Tee
Tube to Welded Connection	Straight Inline: Socket Weld Connector, Butt Weld Connector Elbow: Socket Weld Elbow, Butt Weld Elbow Tee: Socket Weld Tee
Components	Nut, Ferrule Set, Fitting End Closure, Tube End Closure
Pipe to Pipe Connection	Straight Inline: Hex Nipple, Close Nipple, Hex Coupling, Plug, Caps Elbow: Male Elbow, Female Elbow Tee: Male Tee, Female Tee
Size	Fraction: 1/8" Tube OD to 1.1/2" Tube OD Metric: 3mm Tube OD to 38mm Tube OD
Pressure	4000 psi to 10000 psi depends upon size (Please refer pressure chart)
Temperature	Upto 648 Degree Celsius
End Connection	Available with NPT, BSPT, BSPP, SAE pipe threads.
Material	SS316 / SS304 Inline: ASTM A276 / ASTM A479 Forgings: ASTM A182 CS Inline: ASTM A108 Forgings: ASTM A105 ASTM A106 Also available in Brass, Monel and special alloy on request.
